Video Camera Electronica-841

Used Google translator

     Black-and-white video camera "Electronica-841." Designed to work with video recorders "Electronica-501-Video", "Electronica-502-Video", "Electronica-505-Video", "Electronica-508-Video", "Electronica-509-Video", and other recorders, providing synchronized video cameras. This video camera is an almost exact copy of the video cameras Sony AVC-3400.
     Dimensions of the camera with a lens of 265 х 280 х 75 mm. Weight of 1.9 kg. Resolution of 350 lines.

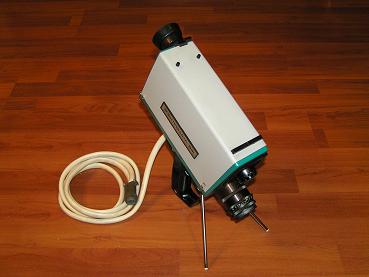

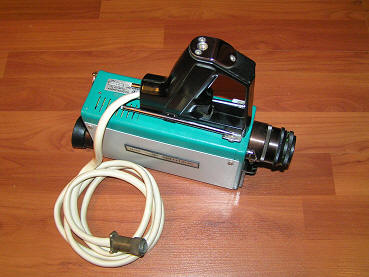

Here are the photos of the two, I have the same type of available cameras.

Photos can be enlarged

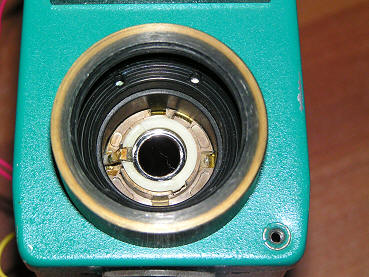

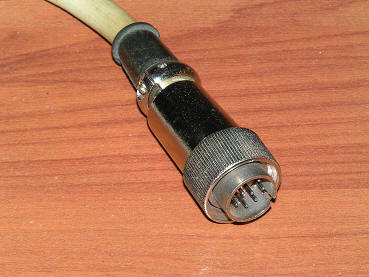

The video camera is used vidicon type LI437-1. Above the lens is the electret microphone grille. Ten pin cable connector.

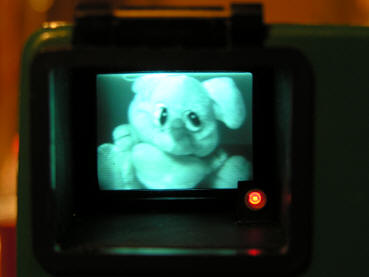

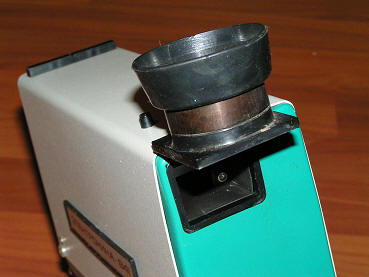

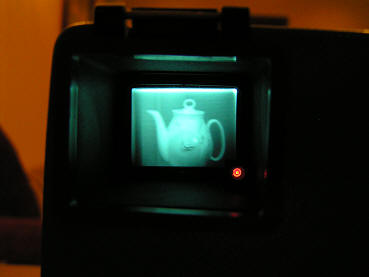

Used as a viewfinder 4LK2B kinescope. In the photo on the right image in the viewfinder using the standard lens "Industar 50-2" (3.5/50). Kettle height of 17 cm is at a distance of 3 m from the camera lens.

In the picture below the image in the viewfinder with the lens "Industar 61L/D" (2.8/35). Toy height of 11 cm is at a distance of 1,1 - 1.2 m from the lens of the camera.

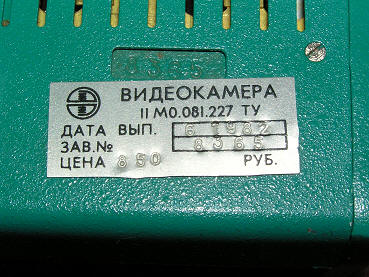

One of my existing cameras were sealed

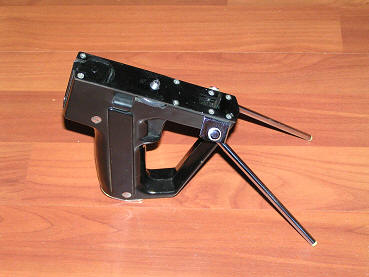

Video cameras were equipped lenses with a constant focal length of "Industar 50-2" or lens with a variable focal length of "Meteor 5-1"

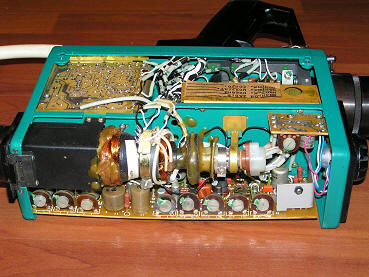

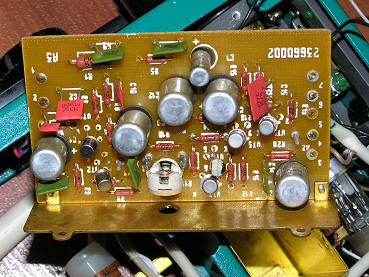

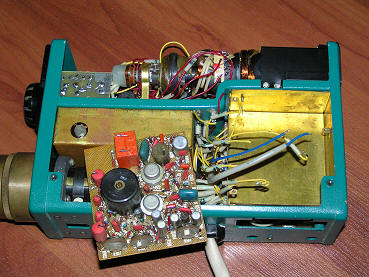

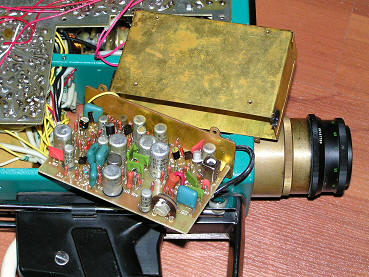

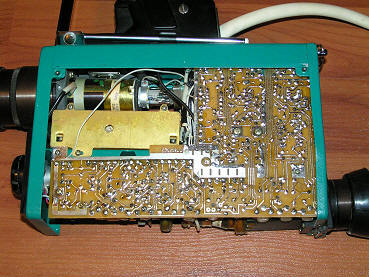

Photos taken during the repair

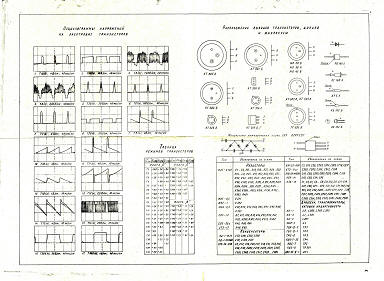

Electrical circuit cameras "Electronica-841"

Operating manual camera "Electronica-841"
